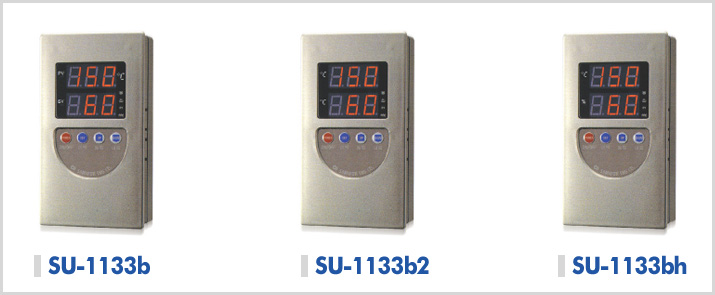

| MODEL |
SU-1133b(Thermostat ) |
SU-1133b2(차온조절기) |
SU-1133bh(온·습도조절기) |
| Input sensor |
Thermistor |
Thermistor+Thermistor |
Thermistor+HUMIDITY |
| Measure range |
-50~200 |
-50~200, -50~200 |
-50~99.9℃,0~100% |
| SENSOR |
Attach |
Attach |
Attach |
| Precision |
F.S 0.3% |
F.S 0.3% |
F.S 0.3%, ±3% |
Power Supply
- Basic form : AC100~240V(change rate of permission power ± 10%)
- Option : DC12V, DC24V
OUT1
- Basic form : Relay output(AC250/10A, DC12V, A contact), Conversion of Cooling control(C), Heating control(H), Possibility of conversion into ON/OFF control and proportional control
- Option : SSR out(DC12V)
OUT2
- Basic form : Relay out(AC250/2A, DC12V, A contact), Conversion of Cooling control(C), Heating control(H)
- Option : SSR out(DC12V)
Relay Durability
- Mechanical load : about one million times and above
- Electrical durability : three hundred thousand times and above
Special featureSU-1133t
- Temperature control via a SV value
Special feature SU-1133tt
- Control via a sensor deviation : Operated when the value detected by 2 kinds of sensors is different from the setting value
- Use : Midnight boiler, photovoltaic power plant, etc.
Special feature SU-1133th
- Thermistor+HUMIDITY Control
Other functions
-
Filtering : Mitigation of it with a filtering value because there may happen a phenomenon that numbers swing when the sensor line is combined with the power route
- Assurance of input sensor(offset): A function to compensate it because there may happen an error in the detection value if the sensor line is lengthened or aged
- set restricted
- LOC function : Locking to prohibit correction of detailed setting by anyone except for the installer
SIZE
- Dimensions : (W) 78mm×(H) 138mm
- Panel size : (W) 75mm×(H) 135mm
