| MODEL |
SU-105pt |
SU-105k |
SU-105trr |
SU-105arr |
SU-105ta |
SU-105t |
| Input sensor |
PT |
K |
T |
4~20mA |
Thermistor |
Thermistor |
| Measure range |
-200~400 |
-200~999 |
-200~400 |
0~999 |
-50~150 |
-50~150 |
| SENSOR |
Separate |
Separate |
Separate |
|
Attach |
Attach |
| Precision |
F.S 0.2% |
F.S 0.3% |
F.S 0.3% |
|
F.S 0.5% |
F.S 0.5% |
| Indication unit |
-within range of -99.9~99.9 : increase or decrease ± 0.1
-outside range of -99.9~99.9 : increase or decrease ± 1 |
Source of electricity
- Basic form : AC100~240V(change rate of permission power ± 10%)
- Option : DC12V, DC24V
OUT1
- Basic form :Relay output(AC250/5A, DC12V, A, B contact),Conversion of Cooling control(C), Heating control(H), ON/OFF Control, Ratio control
- Option : SSR out(DC12V)
OUT2
- Basic form : Relay output(AC250/2A, DC12V, A,B contact), Conversion of Cooling control(C), Heating control(H),
Possibility of conversion into an OUT1 ON/OFF timer and possibility of separated setting from OUT1
(example) SV1:25.0 SV2:50.0 OUT1: cooling, OUT2 : heating (SU-105t has no OUT2)
- Option : SSR out(DC12V)
Relay Durability
- Mechanical load : about one million times and above
- Electrical durability : three hundred thousand times and above
Temperature&Humidity
- Temperature : 0~50℃
- Humidity : 20~85%
Special feature
- Proportional control(pi) : Control of temperature after conversion into proportional control because the rising temperature cannot be controlled by remaining warmth in ON/OFF control (SU-105pt, 105k)
- Filtering : Mitigation of it with a filtering value because there may happen a phenomenon that numbers swing when the sensor line is combined with the power route
- Assurance of input sensor : A function to compensate it because there may happen an error in the detection value if the sensor line is lengthened or aged
- Limit of setting range
- Possibility of converting OUT2 into a timer and using it as an ON/OFF timer
- LOC function : Locking to prohibit correction of detailed setting by anyone except for the installer
SIZE
- Dimensions : (W) 76mm×(H) 34mm
- Panel size : (W) 70mm×(H) 28mm
| MODEL |

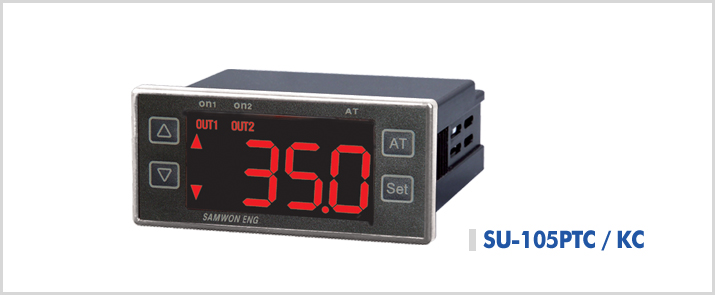

SU-105PTC |
SU-105KC |
| Input sensor |
PT |
K |
| Measure range |
-200.0~400.0 |
-200~1370 |
| SENSOR |
Separate |
Separate |
| Precision |
F.S 0.2% |
F.S 0.3% |
Indication unit
|
0.1 ± 1Dight |
1 ± 1Dight |
Source of electricity
- Basic form : AC100~240V(change rate of permission power ± 10%)
- Option : DC12V, DC24V
OUT 1
- Basic form : 4-20 current output(possibility of back current control)
OUT 2
- Basic form : Relay PID control(AC250/2A, DC12V, A, B contact)
Cooling control(C), Heating control(H)
- 8 kinds of alarms
Relay Durability
- Mechanical load : about one million times and above
- Electrical durability : three hundred thousand times and above
Temperature&Humidity
- Temperature : 0~50℃
- Humidity : 20~85%
Special feature
- Simple and precise current control
- Simple and precise relay PID control
- Slow start function
- Filtering function to prevent swinging by noises
- set restricted
- LOC function : Locking to prohibit correction of detailed setting by anyone except for the installer
- Furnished with an auto tuning function to automatically and optimally control the heater
SIZE
- Dimensions : (W) 76mm×(H) 34mm
- Panel size : (W) 70mm×(H) 28mm
HOME
PRODUCTS

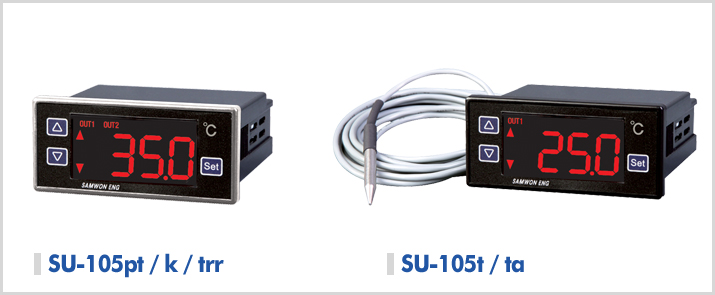

SU-105pt/k/trr
